Upgrade Your QNAP TS-469L (Pro) NAS and Check Energy Consumption

Quick summary ↬ How much memory can I install in my QNAP TS-469? No, it's not limited to just 3 GB! What is DOM or Flash Memory? What's inside my QNAP NAS? How reliable does MemTest86 show all possible problems? How much memory and what kind of RAM can be installed on the Lenovo Yoga 500 and Lenovo B590? Answers in this article.
Posted , by Denis Sokol

You will get answers to the following questions:

  • How do I access the BIOS (UEFI) settings on my QNAP and what are the settings there?
  • What it inside my QNAP?
  • What is DOM (flash memory)?
  • Will the NAS work without DOM?
  • Can I install more than 3 GB of RAM on QNAP TS-469L (Pro)?
  • How reliable is MemTest86 (Memtest86+) and does it accurately show all errors?
  • How much and what kind of memory can you install in your Lenovo Yoga 500 and old Lenovo B590?
  • How much power does your QNAP NAS use?


About a сhaos in BIOS/UEFI terminology that manufacturers created you can read this very detailed long post by Adam Williamson. I will use BIOS/UEFI depending on the context so that it can be understood by people who used to hear the wrong terminology. :)

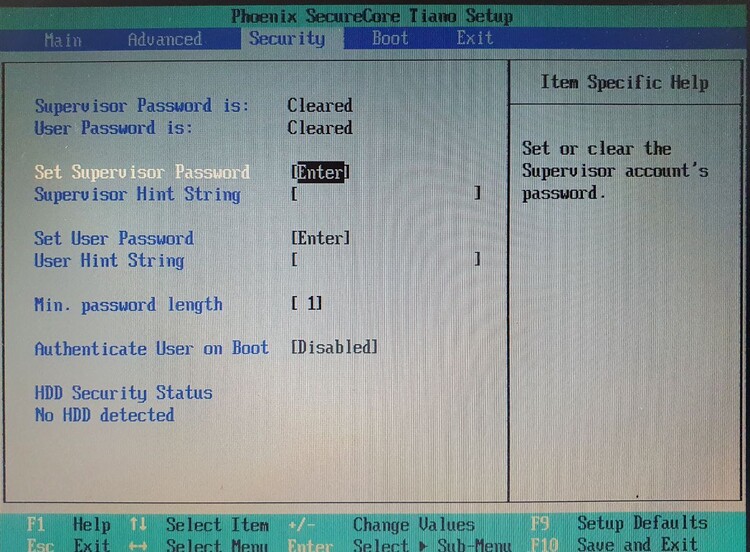

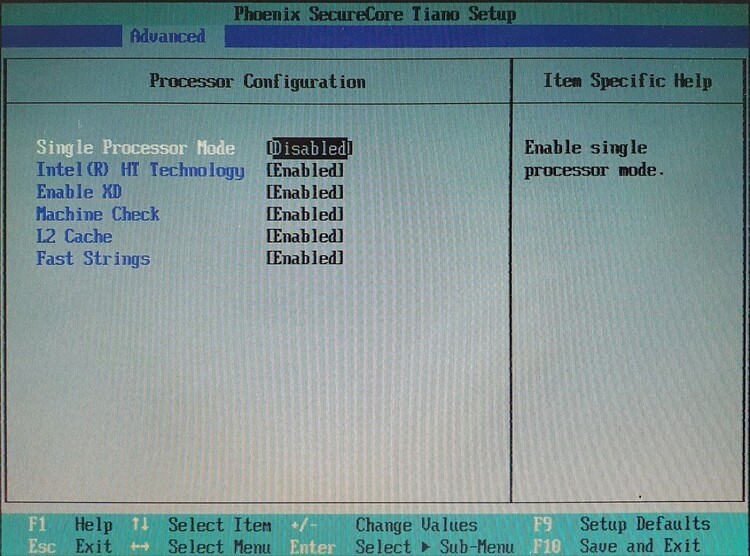

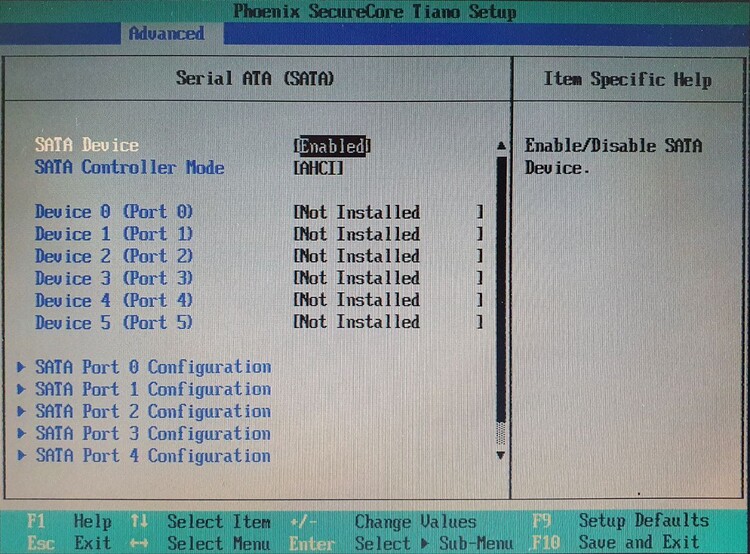

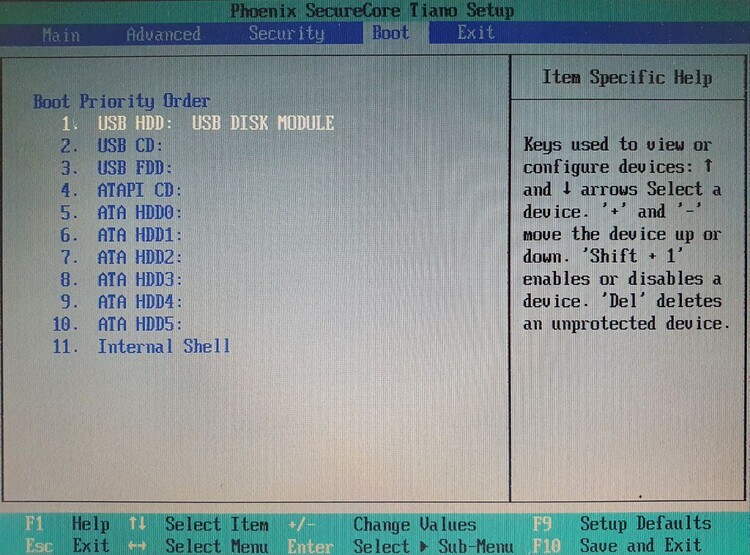

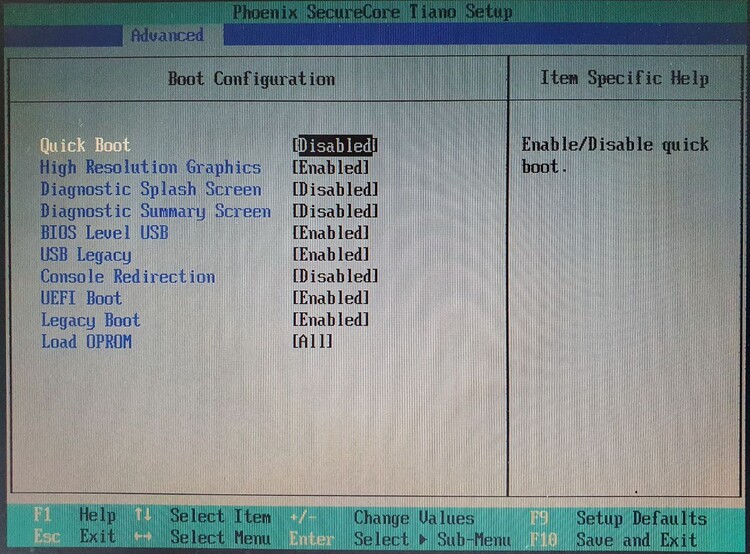

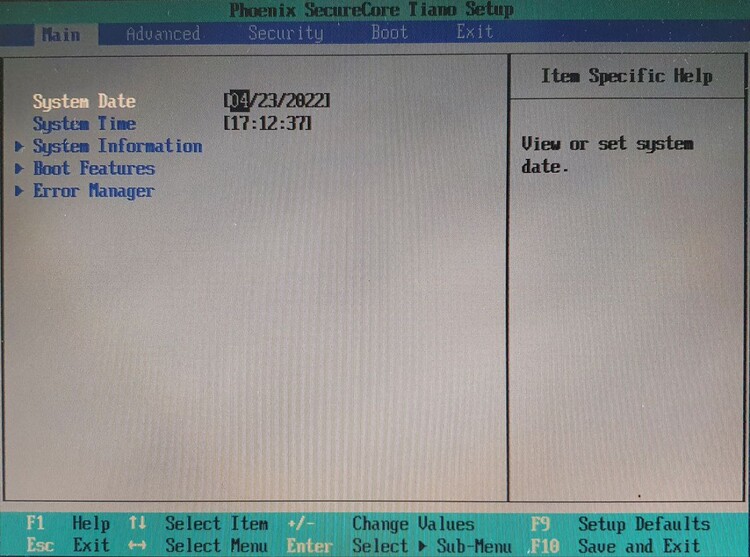

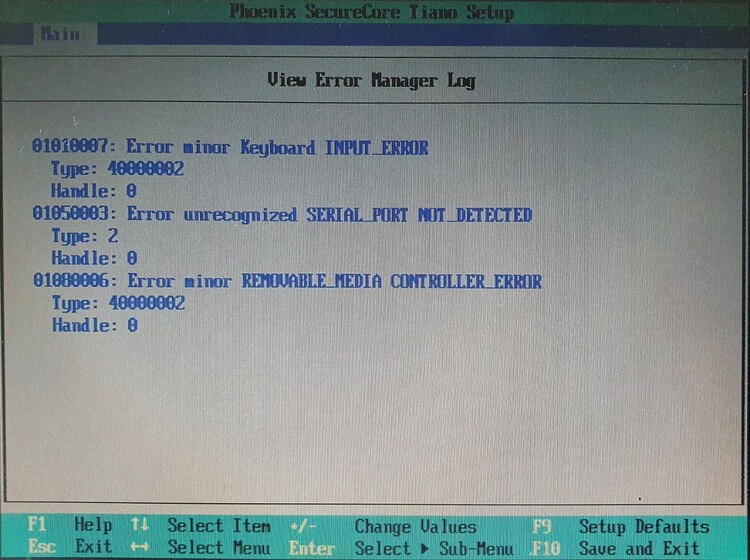

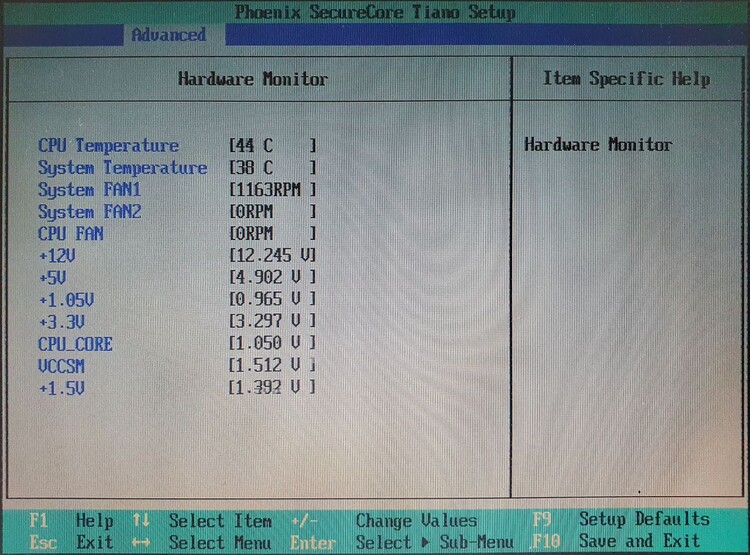

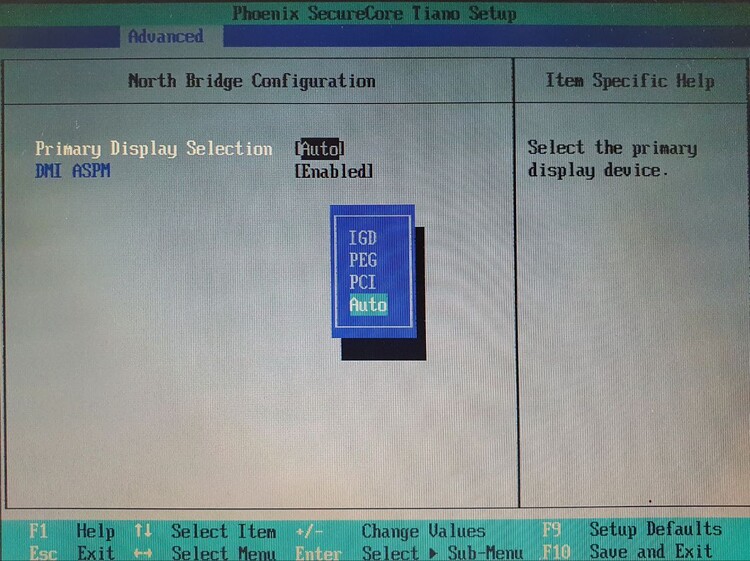

On a QNAP TS-469L or TS-469 Pro, you can access the BIOS by holding F2 at boot, however you can only see it with VGA monitoring, not HDMI. I use a portable HDMI display on my NAS and don't have VGA monitors. I found a one and took some screenshots (actually photos) of all the main settings, which you can find in the following accordion.

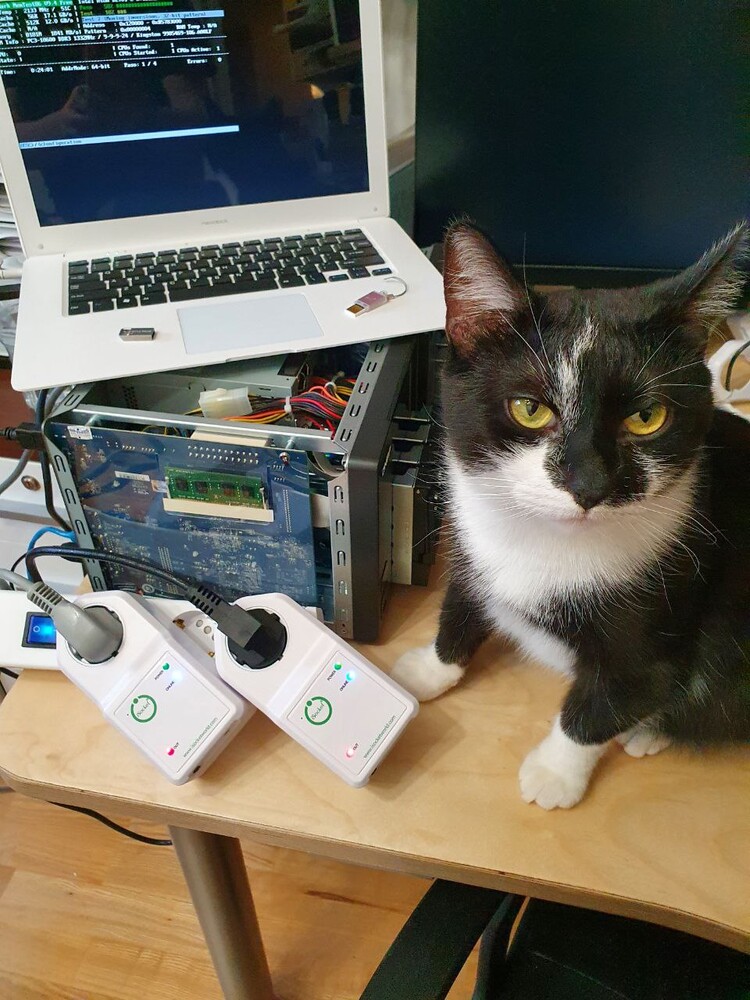

QNAP NAS connected to iSocket for power usage measurements

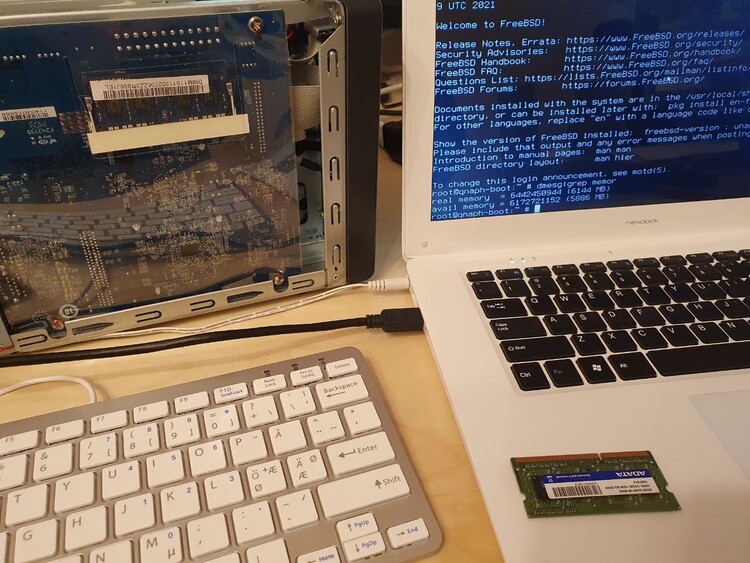

You see a portable HDMI display connected to QNAP running a memory test and two iSocket to measure the power of each QNAP unit. More on these tests to follow.

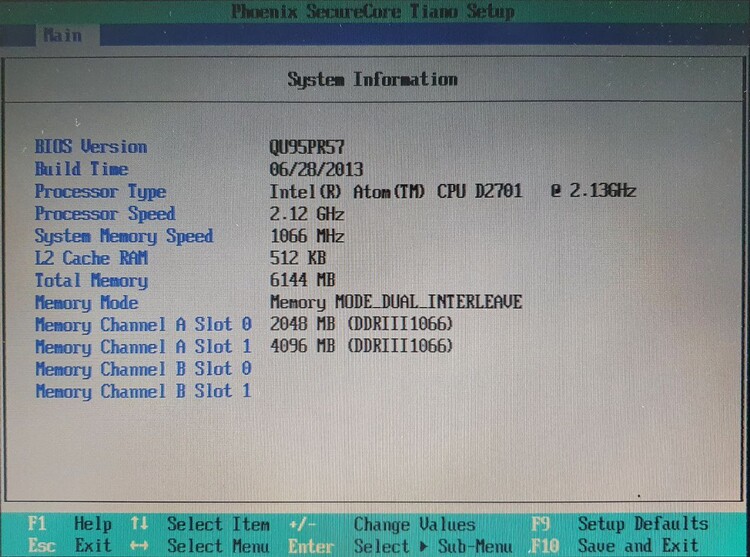

TS-469L. Spoiler: you already see it can run with 6GB of RAM. ;)

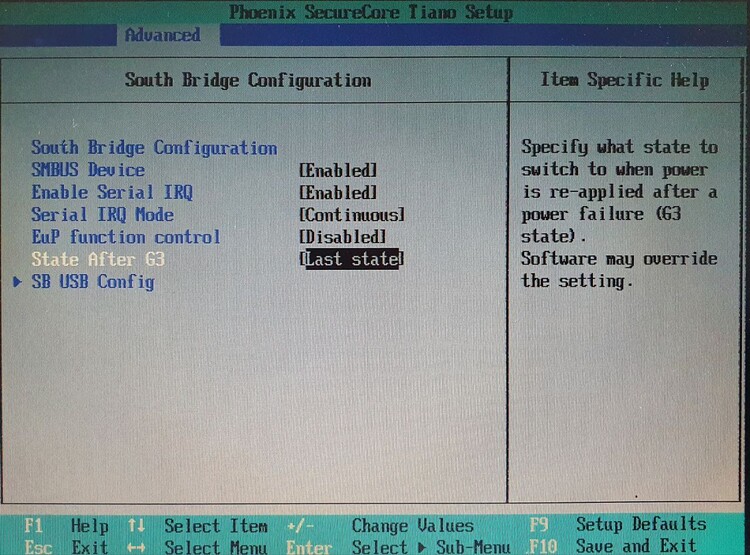

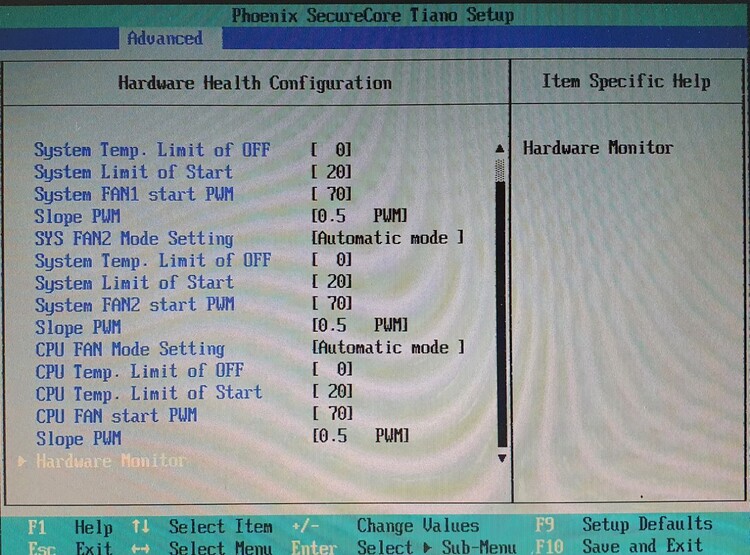

I thought that I could probably change the settings here to access the BIOS from HDMI monitor, but I was afraid of losing full access and therefore did not try all the options.
Spoiler: that is actually DOM (or Flash Memory, that's it!).

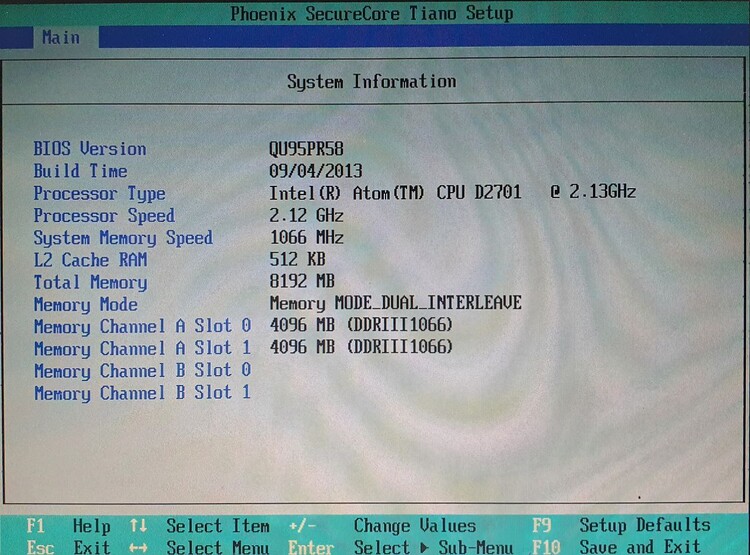

TS-469 Pro. Another spoiler. ;) 8GB here not because it is Pro, but because I try 8GB here.

What is inside?

Both of my boxes had 3 GB RAM and I don't remember if I installed them in the past or bought them from a supplier that way.

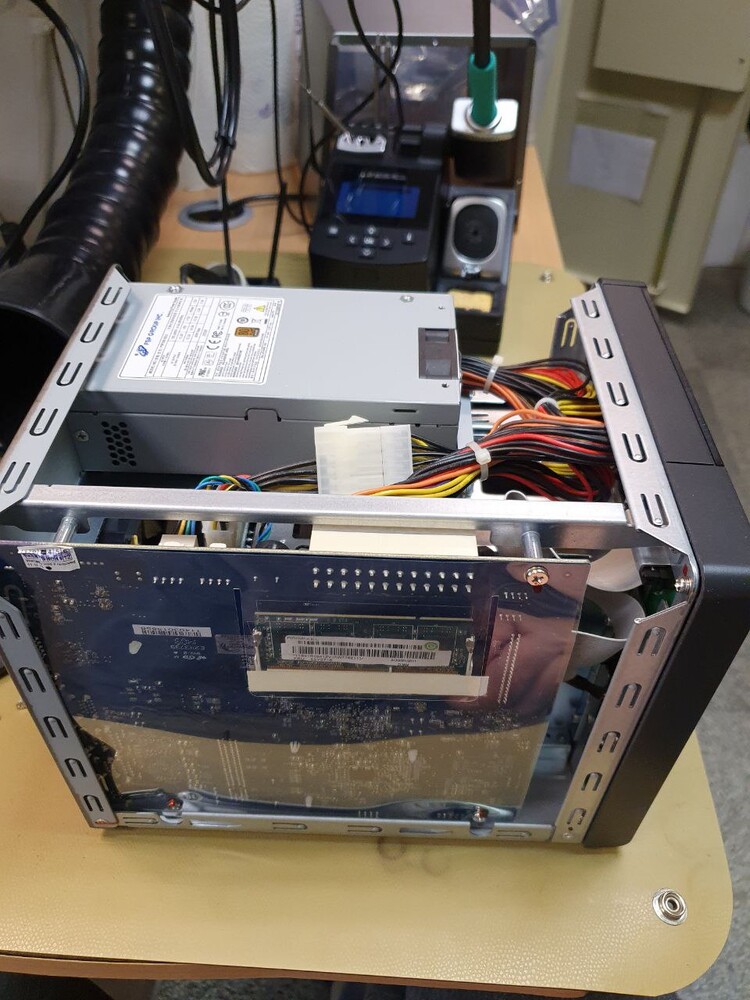

QNAP TS-469L NAS with open case:

QNAP TS-469L NAS open case

It has two DDR3 SO-DIMM module slots on both sides of the motherboard.

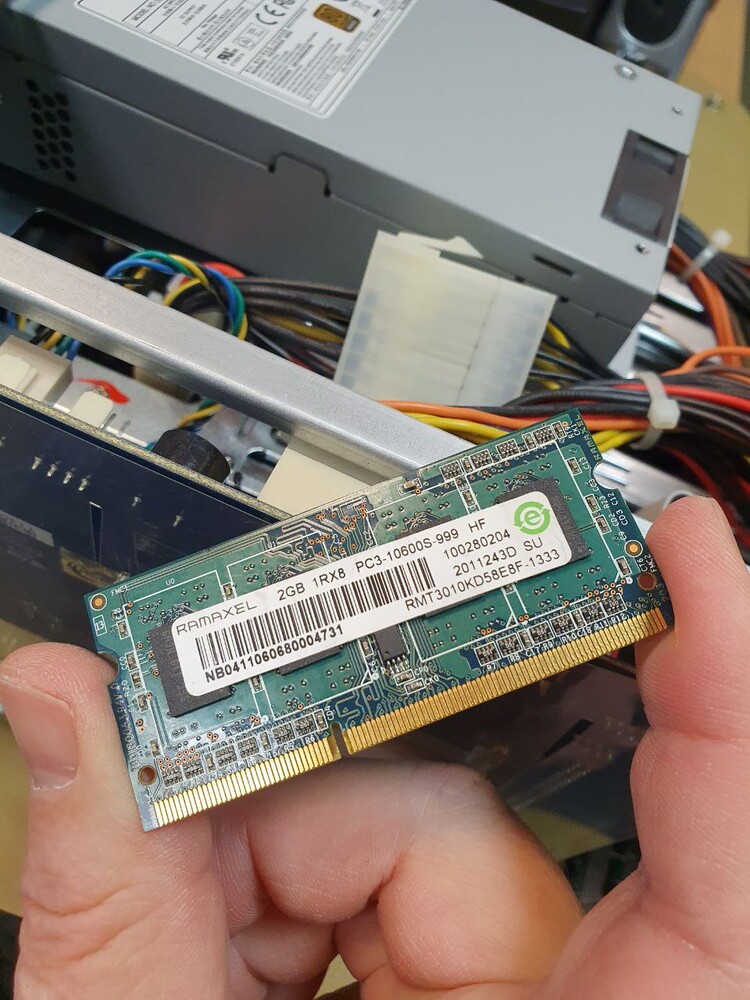

2GB DDR3-1333 PC3-10600 RAMAXEL SO-DIMM module on the outside of the motherboard:

2GB DDR3-1333 PC3-10600 RAMAXEL SO-DIMM inside QNAP

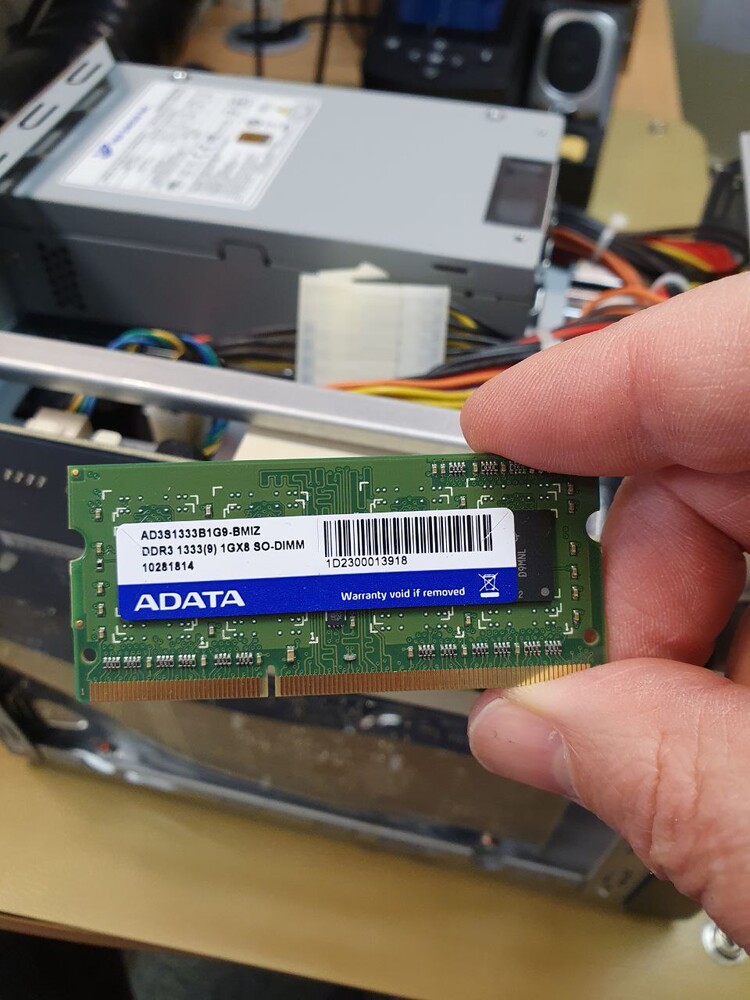

1GB DDR3-1333 ADATA SO-DIMM module on the inner side of the motherboard:

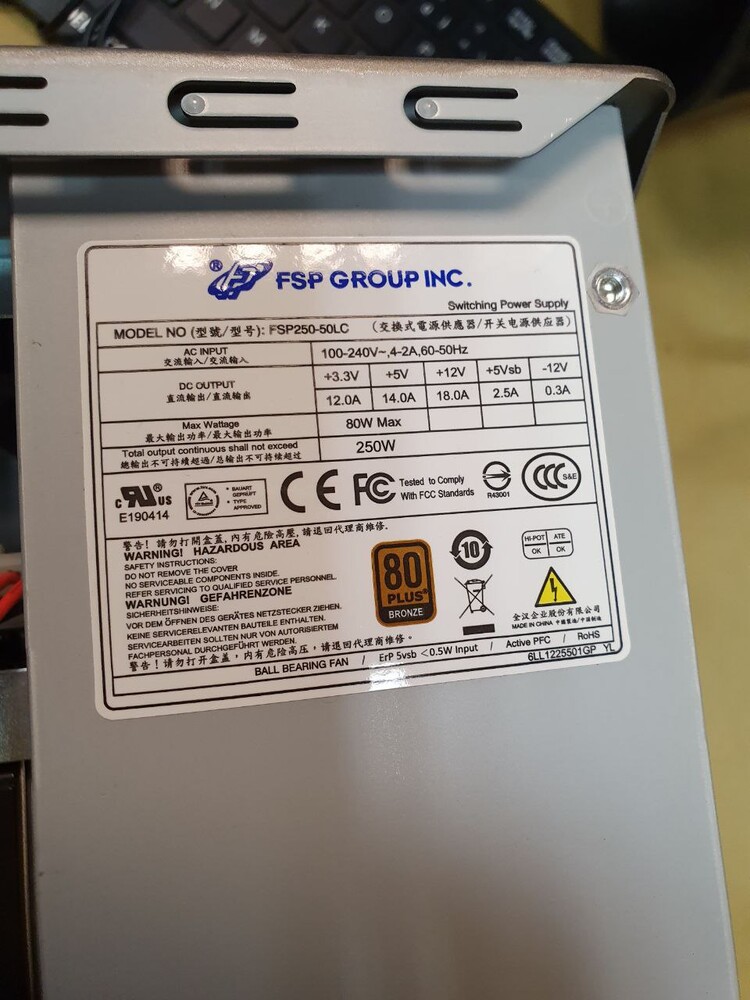

QNAP TS-469L power supply:

Power supply of QNAP NAS

What exactly is DOM (Flash Memory)?

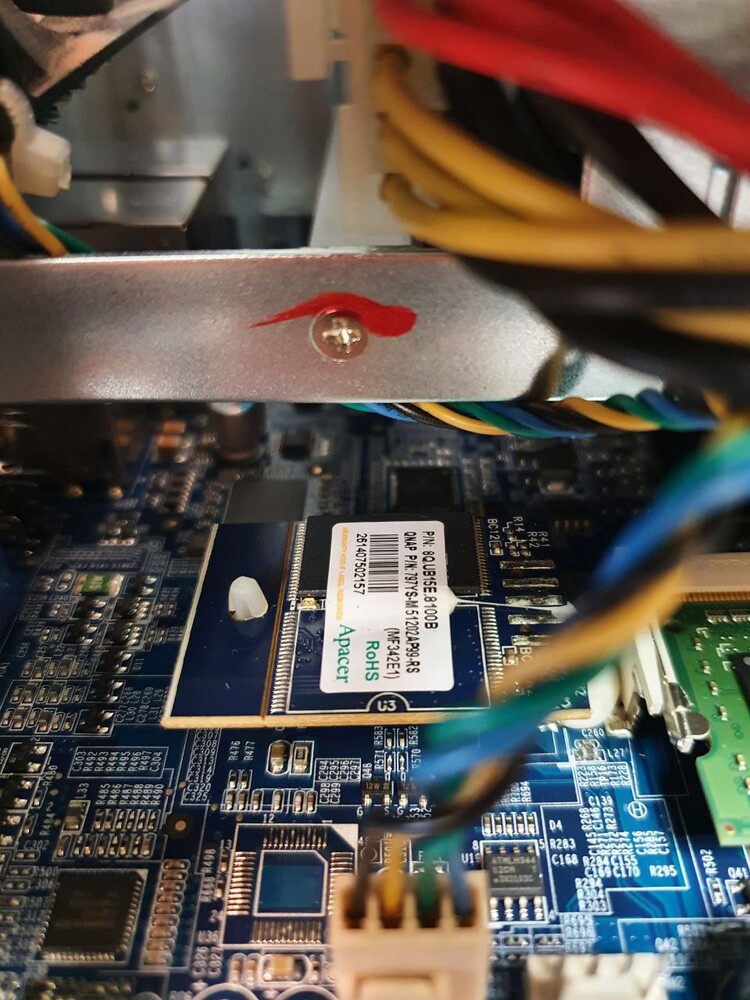

What they call Flash Memory or 512MB DOM installed here:

DOM or flash memory of QNAP
You can also notice part of the internal DDR3 SO-DIMM slot on the right side of this image.

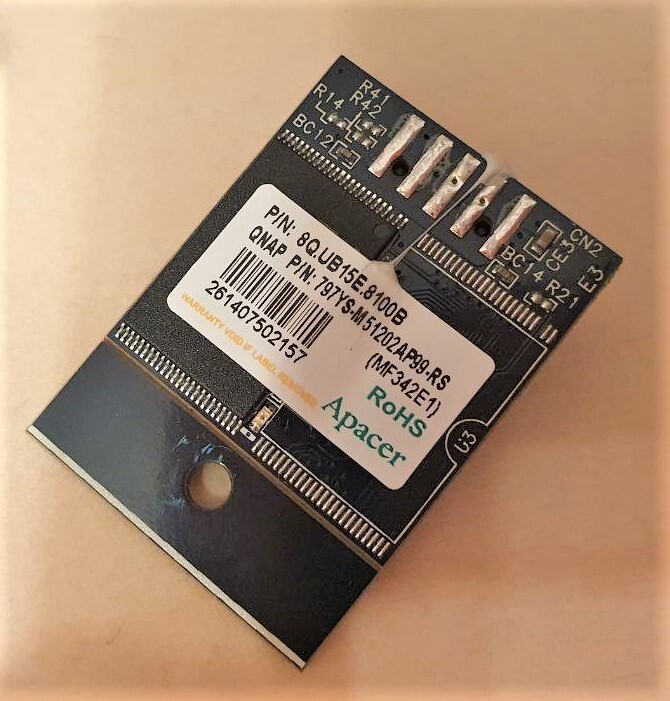

This flash memory has a part number 8Q.UB15E.8100B, QNAP P/N: 797YS-M51202AP99-RS (MF342E1). In my understanding, U3 is a place for another 512 MB chip. I had an idea to find this IC and solder it, but I gave up on that idea - who needs 1Gb flash if I can use a decent external stick. See my article on choosing the right flash drive to run FreeBSD on this NAS. For this reason, I did not check which chip is installed there.


NOTE. You may link to this post in the forums or from your own websites, but you may not copy the text or photos - this would be a copyright infringement. Sorry, I don't have time to participate in long discussions on the forums, but you can ask short questions on Twitter if Musk allows. ;) April 2022…

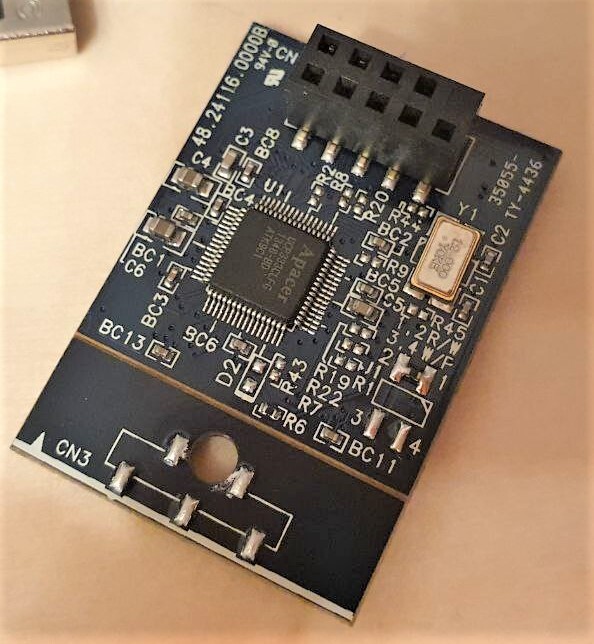

DOM (flash memory) from QNAP

My next goal was to understand what exactly is this DOM (flash memory) for? We know that QNAP has its own operating system, and I never knew that it runs on this particular flash memory, and not on the hard drives in the bays. I had no idea they had a BIOS or UEFI and I thought the UEFI was probably in that DOM unless I accessed their UEFI (BIOS) with a VGA monitor. So I tested it like this. I turned on this NAS without hard drives and it booted with its own QNAP system from this DOM. I also decided to boot from a FreeBSD bootable stick to see how this DOM would be recognized. You can read about how to prepare such a boot disk in this article. Look at it:

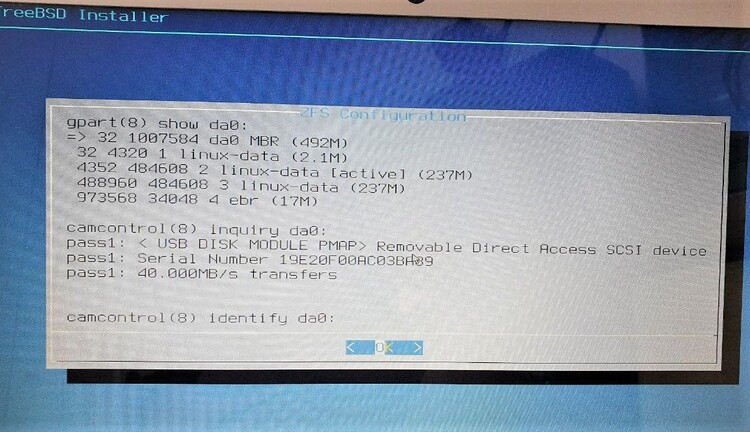

How FreeBSD Installer sees QNAP NAS DOM (flash memory)

So it sees it as a da0 USB DISK MODULE PMAP with MBR, and we obviously see a proprietary QNAP Linux system on it. It's just a flash drive and nothing prevents you from using this NAS without this DOM if you install your own system because UEFI is not on this DOM but on a chip on the motherboard and it will boot your own FreeBSD flash drive. I'm pretty sure you can install FreeBSD into that DOM, but I won't. Only 512 MB. I left it there.

What their DOM looks like from inside FreeBSD:

# gpart list da0
                        Geom name: da0
                        modified: false
                        state: OK
                        fwheads: 64
                        fwsectors: 32
                        last: 1007615
                        first: 32
                        entries: 4
                        scheme: MBR
                        1. Name: da0s1
                           Mediasize: 2211840 (2.1M)
                           Sectorsize: 512
                           Stripesize: 0
                           Stripeoffset: 16384
                           Mode: r0w0e0
                           efimedia: HD(1,MBR,0xb66e61e9,0x20,0x10e0)
                           rawtype: 131
                           length: 2211840
                           offset: 16384
                           type: linux-data
                           index: 1
                           end: 4351
                           start: 32
                        2. Name: da0s2
                           Mediasize: 248119296 (237M)
                           Sectorsize: 512
                           Stripesize: 0
                           Stripeoffset: 2228224
                           Mode: r0w0e0
                           efimedia: HD(2,MBR,0xb66e61e9,0x1100,0x76500)
                           attrib: active
                           rawtype: 131
                           length: 248119296
                           offset: 2228224
                           type: linux-data
                           index: 2
                           end: 488959
                           start: 4352
                        3. Name: da0s3
                           Mediasize: 248119296 (237M)
                           Sectorsize: 512
                           Stripesize: 0
                           Stripeoffset: 250347520
                           Mode: r0w0e0
                           efimedia: HD(3,MBR,0xb66e61e9,0x77600,0x76500)
                           rawtype: 131
                           length: 248119296
                           offset: 250347520
                           type: linux-data
                           index: 3
                           end: 973567
                           start: 488960
                        4. Name: da0s4
                           Mediasize: 17432576 (17M)
                           Sectorsize: 512
                           Stripesize: 0
                           Stripeoffset: 498466816
                           Mode: r0w0e0
                           efimedia: HD(4,MBR,0xb66e61e9,0xedb00,0x8500)
                           rawtype: 5
                           length: 17432576
                           offset: 498466816
                           type: ebr
                           index: 4
                           end: 1007615
                           start: 973568
                        1. Name: da0
                           Mediasize: 515899392 (492M)
                           Sectorsize: 512
                           Mode: r0w0e0
                        # gpart show da0
                        =>     32  1007584  da0  MBR  (492M)
                               32     4320    1  linux-data  (2.1M)
                             4352   484608    2  linux-data  [active]  (237M)
                           488960   484608    3  linux-data  (237M)
                           973568    34048    4  ebr  (17M)
                        # mount -t ext2fs /dev/da0s2 /mnt
                        # du -d3 -h /mnt
                         12K    /mnt/lost+found
                        179M    /mnt/boot
                        179M    /mnt
                        # ls -l -h /mnt/boot/
                        total 182973
                        -rw-r--r--  1 root  wheel   4.6M Jul 13  2021 bzImage
                        -rw-r--r--  1 root  wheel    76B Jul 13  2021 bzImage.cksum
                        -rw-r--r--  1 root  wheel    11M Jul 13  2021 initrd.boot
                        -rw-r--r--  1 root  wheel    82B Jul 13  2021 initrd.boot.cksum
                        -rw-r--r--  1 root  wheel   102M Jul 13  2021 qpkg.tar
                        -rw-r--r--  1 root  wheel    80B Jul 13  2021 qpkg.tar.cksum
                        -rw-r--r--  1 root  wheel    49M Jul 13  2021 rootfs2.bz
                        -rw-r--r--  1 root  wheel    81B Jul 13  2021 rootfs2.bz.cksum
                        -rw-r--r--  1 root  wheel    12M Jul 13  2021 rootfs_ext.tgz
                        -rw-r--r--  1 root  wheel    85B Jul 13  2021 rootfs_ext.tgz.cksum
                        # umount /mnt
                        # mount -t ext2fs /dev/da0s3 /mnt
                        //The same stuff there
QNAP TS-469 LED display
QNAP TS-469 Pro has a display that will show you IP address, otherwise you have to figure it out yourself.

Once QNAP Linux has booted you can access it via SSH with the user/password admin/admin:

[~] # uname -a
Linux NASE0C3B6 3.4.6 #1 SMP Fri Aug 21 05:49:39 CST 2020 x86_64 GNU/Linux

Boot screen of QNAP OS

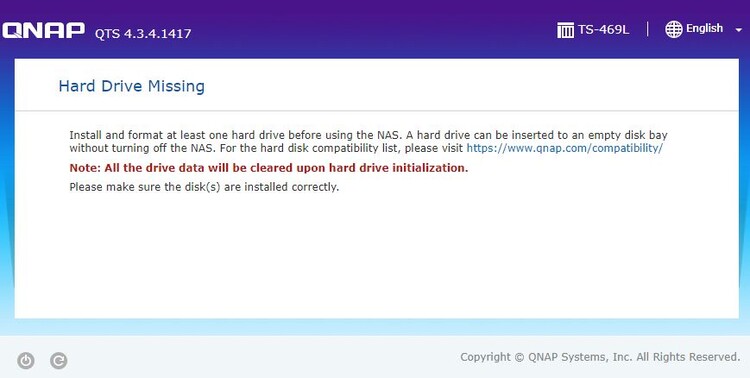

TS-469L booted from the flash memory without HDDs.
When inserting a disc from a previous QNAP installation.

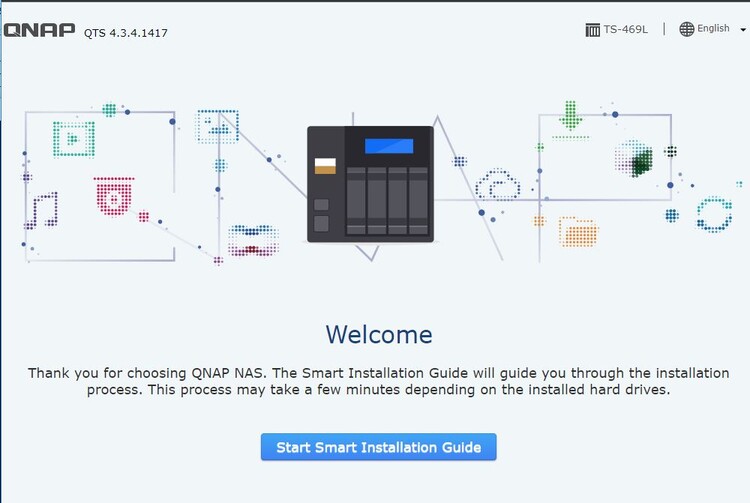

TS-469L when you insert brand new HDDs.

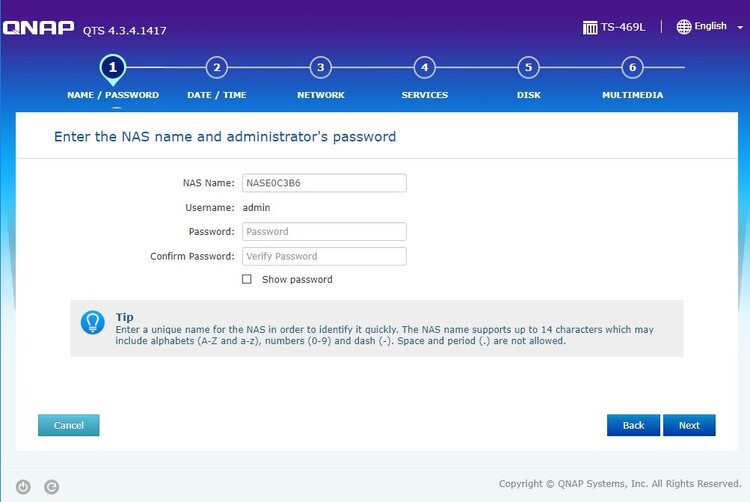

Next screen.

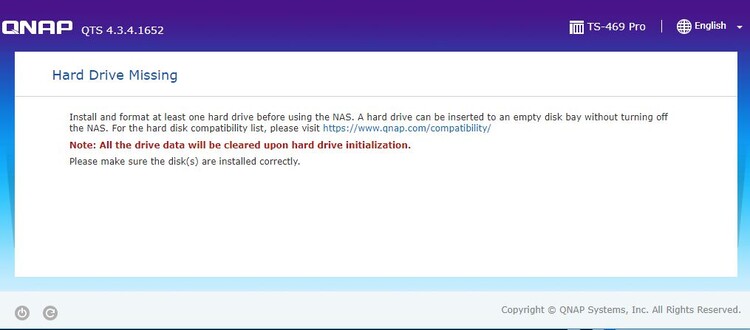

TS-469 Pro boot screen without HDDs.

Are you a manufacturer and would like me to review your product? If I find it interesting and useful for personal use I can review it for free. Contact me on Twitter.

I will open the second unit. Oh... it's time to vacuum:

Open case of QNAP TS-469 Pro
Dust has collected inside the QNAP TS-469 Pro.

It also has a 2GB + 1GB combo, DDR3-1333.

Memory can never be too much - 6GB or 8GB RAM on your QNAP TS-469 (Pro) easily

My goal with all these updates was to run my own FreeBSD on ZFS with native OpenZFS encryption from a UEFI USB stick and I wanted at least 6GB or better 8GB. The QNAP TS-469 spec states that it is equipped with Intel® Atom™ 2.13GHz Dual-core Processor and 1GB DRAM (Expandable RAM, up to 3GB). They say: “The system memory can be increased to 3GB by installing an additional 1GB/2GB SO-DIMM RAM module.” In the BIOS screenshots above, we saw that it has Atom D2701. FreeBSD when running on this NAS also reports this:

# dmesg | grep "CPU:"
CPU: Intel(R) Atom(TM) CPU D2701   @ 2.13GHz (2133.38-MHz K8-class CPU)

The Intel Atom spec (I can't find the D2701 spec for some reason, only the D2700) says 4GB DDR3 800/1066. I want at least 6GB or maybe 8GB to run FreeBSD 13 with OpenZFS native encryption on this NAS.

For reference:

  • DDR3-800 (PC3-6400)
  • DDR3-1066 (PC3-8500)
  • DDR3-1333 (PC3-10600)
  • DDR3-1600 (PC3-12800)
  • DDR3-1866 (PC3-14900)
  • DDR3-2133 (PC3-17000)

Let's finally find out if we are really limited to 3GB (QNAP spec) or 4GB (Intel spec). I had several 2GB, 4GB DDR3 SO-DIMMs with different data rates and experimented.

With this module, neither of the two QNAPs has ever been booted in combination with other modules or on its own:

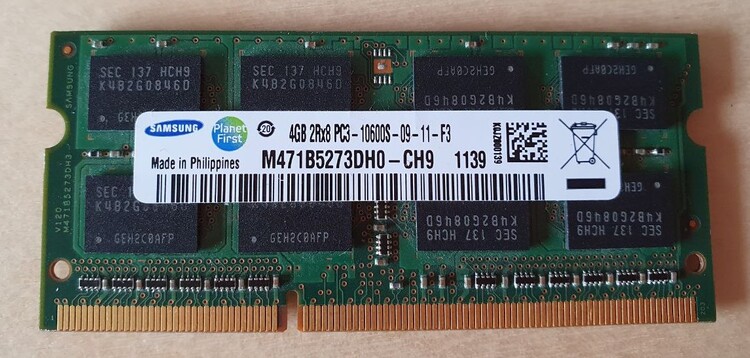

Samsung M471B5273DH0-CH9 4GB from QNAP NAS
Samsung M471B5273DH0-CH9 4GB 2Rx8 PC3-10600S-09-11-F3 is bad for QNAP but not for Lenovo laptop (see below).

It's not a difference in RAM speed or RAM corruption, but some specificity for this NAS, because it works fine in combination or alone on Lenovo laptop. I didn't go deep into this issue. My final combination for TS-469 Pro is as follows.

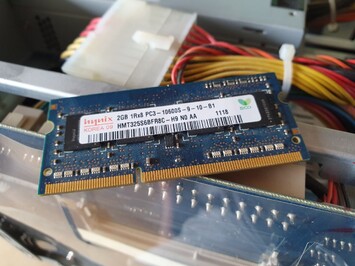

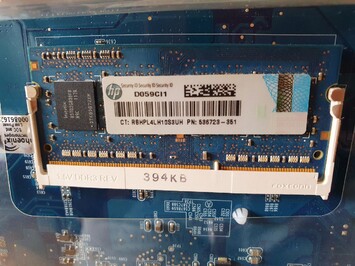

Hynix 2GB 1Rx8 PC3-10600S-9-10-B1 HMT325S6BFR8C-H9 NO AA outside:

Hynix 2GB 1Rx8 PC3-10600S-9-10-B1Hynix 2GB installed inside QNAP NAS

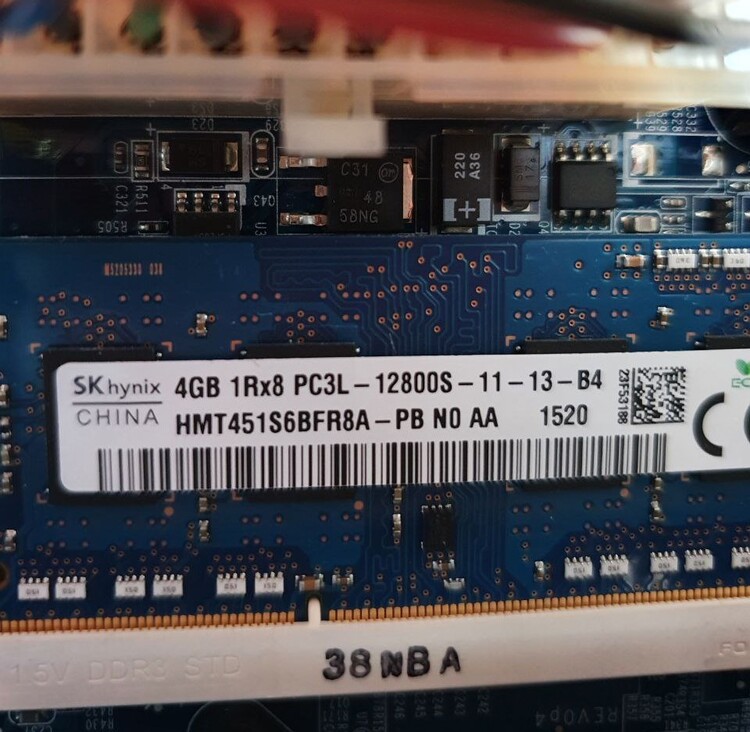

Hynix 4GB 1Rx8 PC3L-12800S-11-13-B4 HMT451S6BFR8A-PB NO AA inside:

Hynix 4GB inside QNAP NAS

The module is borrowed from Lenovo Yoga 500-14IBD 80N4 MTM:80N400CDMT

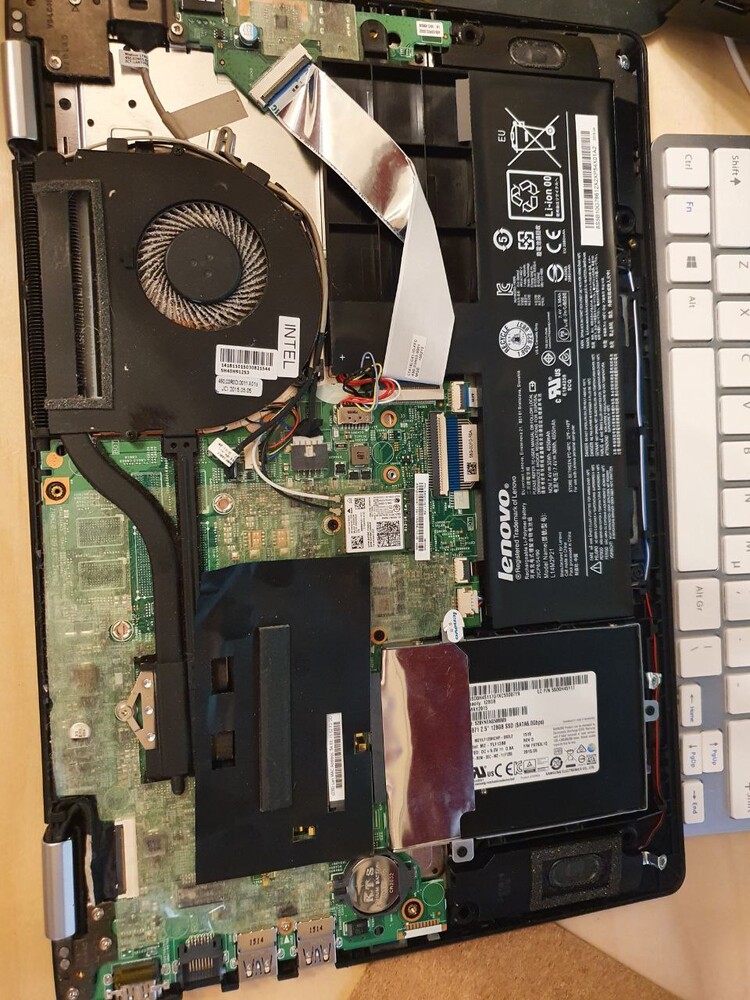

Lenovo Yoga 500-14IBD open case

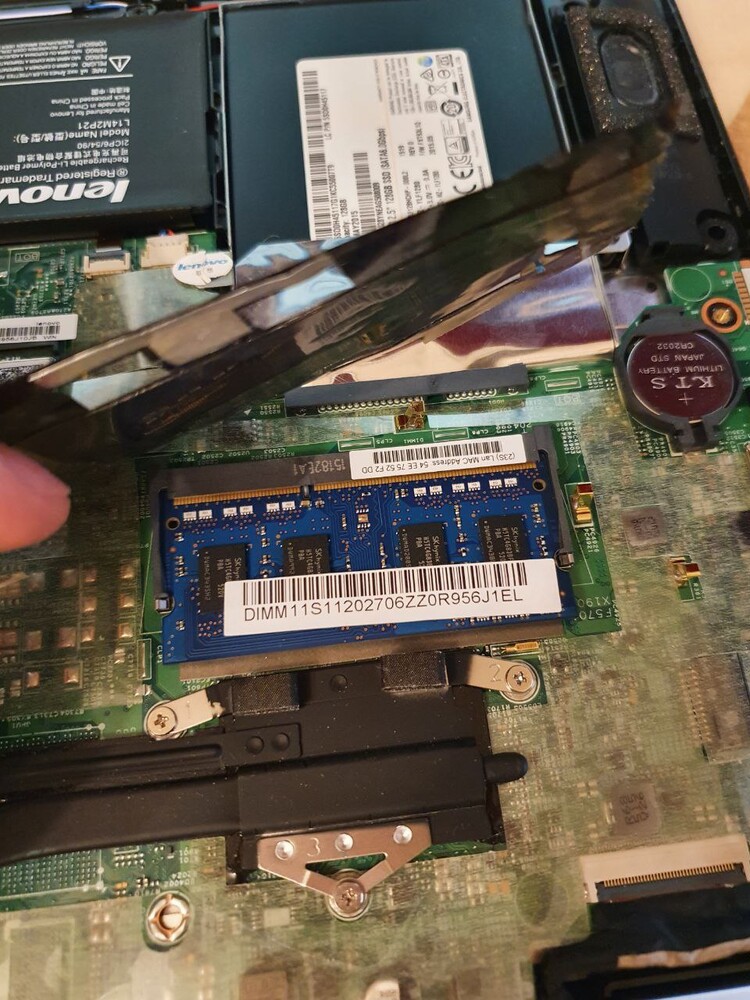

DIMM module inside Lenovo Yoga 500-14IBD

Rumor has it that you can only use certain modules. Not true! I installed the 8GB module with a higher speed and all is well.

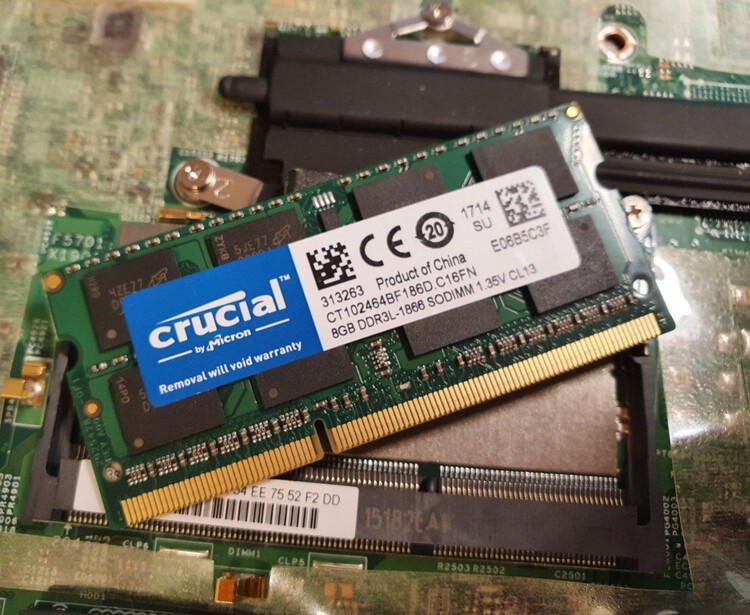

New Crucial 8GB module to be installed to Lenovo Yoga 500
Crucial 8GB DDR3L-1866-SODIMM CT102464BF186D.C16FN is OK for Lenovo Yoga 500.

I performed a memtester from a FreeBSD flash drive on this box, and since I've never had problems using FreeBSD from a flash drive on this unit, I didn't test it with MemTest86.

# pkg install memtester
                        # memtester 6GB
                        got  4635MB (4860866560 bytes), trying mlock ...locked.
                        Loop 1:
                          Stuck Address       : ok
                          Random Value        : ok
                          Compare XOR         : ok
                          Compare SUB         : ok
                          Compare MUL         : ok
                          Compare DIV         : ok
                          Compare OR          : ok
                          Compare AND         : ok
                          Sequential Increment: ok
                          Solid Bits          : ok
                          Block Sequential    : ok
                          Checkerboard        : ok
                          Bit Spread          : ok
                          Bit Flip            : ok
                          Walking Ones        : ok
                          Walking Zeroes      : ok
                          8-bit Writes        : ok
                          16-bit Writes       : ok
                        // There were 5 more loops, but I removed them from here

Here is an example of how FreeBSD sees 6GB of RAM:

FreeBSD terminal on QNAP NAS
This is not a laptop, this is a large display with a keyboard, as I already mentioned. The display is connected to the NAS via HDMI. This test was done on some other combination of RAM modules, not my final combination.

And the problems begin...

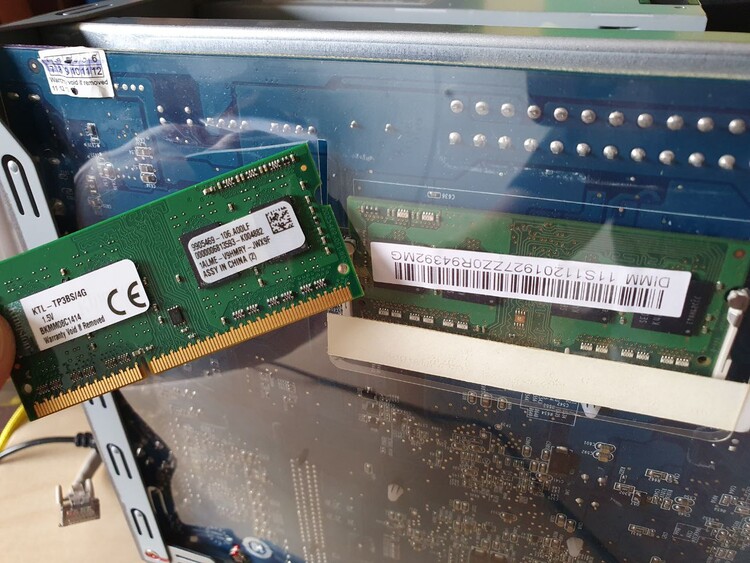

For my second unit (TS-469L) I installed Kingston KTL-TP3BS/4G (DDR3-1333) along with other modules or alone and then the problems started. FreeBSD on a flash drive constantly rebooted, I saw a "bus error", core dump on zfs-load-key or other commands, sometimes the memtester did not start - the unit immediately went into reboot, everything was bad. At first I thought there was something wrong with my idea of ​​having FreeBSD on a USB drive with native OpenZFS encryption. Or perhaps the idea of ​​having 8GB on this machine is really against the spec. However, the fact that I have no issues with my first NAS made me question that conclusion. Therefore, I assumed that this Kingston RAM was causing all problems, and therefore carried out thorough tests. I have tried this module from both sides of the motherboard, alone and together with other modules. I found that the problem is in this module. But what exactly is the problem?

Problematic Kingston KTL-TP3BS/4G for QNAP NAS
QNAP with Kingston KTL-TP3BS/4G (DDR3-1333) and FreeBSD 13 from a flash drive.

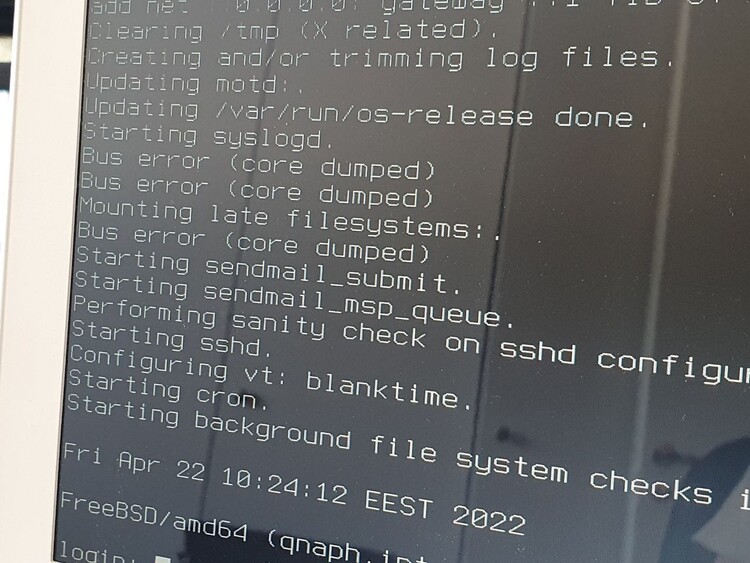

FreeBSD core dump on QNAP NAS because of bad memory module
Bus error (core dumped) - this problems most likely indicates the memory issue.

I will also list other booting issues that you need to be aware of

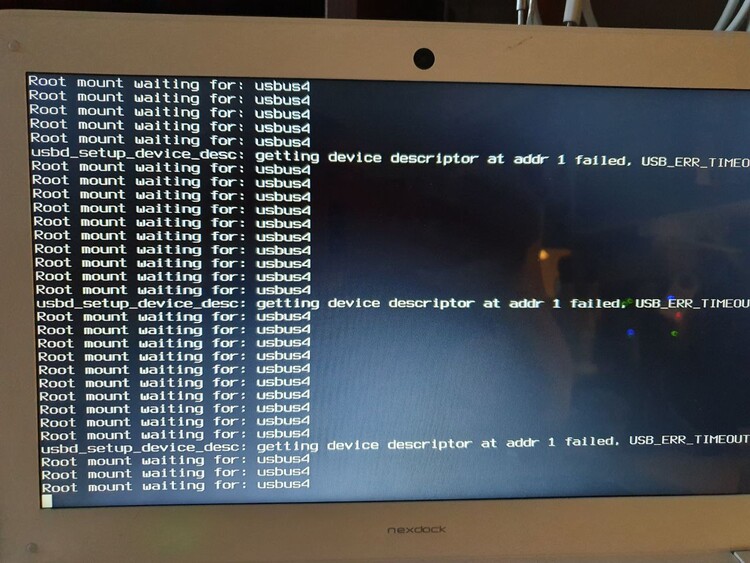

There are problems when trying to boot FreeBSD from the USB 3.0 port (blue port) of QNAP, so be aware:

FeeeBSD on QNAP NAS boot problem if use USB 3 blue port
usbd_setup_device_desc: getting device descriptor at addr 1 failed, USB_ERR_TIMEOUT

I post useful information on my blog and share my experience for free. I don't post links to Amazon or anything like that. If my articles educated you, or maybe even helped you earn or save money or find a job, you can buy me a coffee.

How reliable is MemTest86 and does it accurately show all errors?

There is no doubt that the problem with this Kingston module, because any combination with this module gives instability and everything is fine without it. Fortunately, I have two units so I can experiment. And it was at this point that I decided not to test the memory, but actually the most famous memory testing software, to see how reliably it reports problems, so I run MemTest86 from a flash drive. And passed:

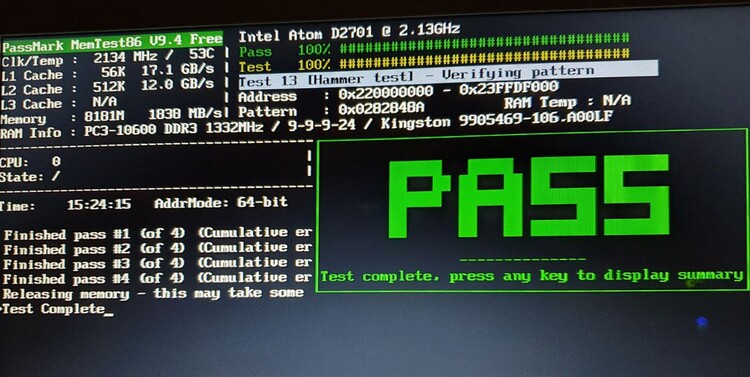

MemTest doesn't anything bad for the bad Kingston module

How then can I be sure that the problem is in the memory? Here's the trick. I installed this Kingston module on my old Lenovo B590 laptop and ran MemTest86 on it. And look what we have:

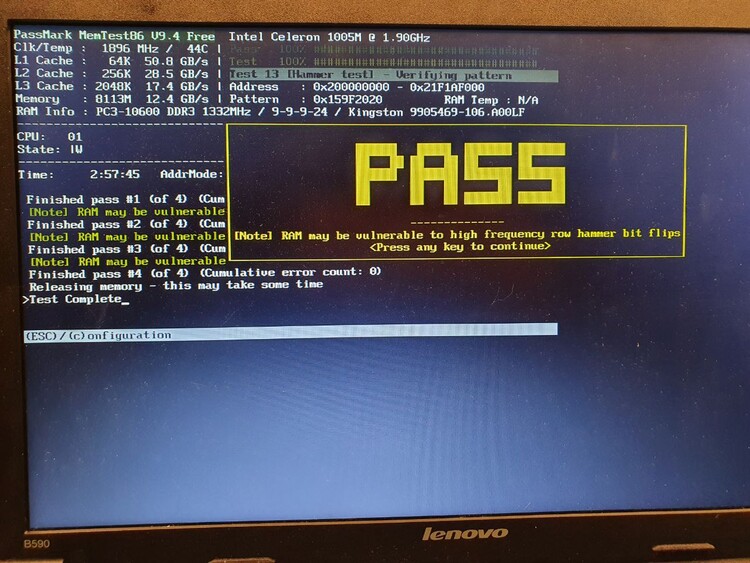

MemTest86 on Lenovo can see a kind of problem

So... conditional pass with the message “ram may be vulnerable to high frequency row hammer bit flips”. See what PassMark tells about this. So it's not considered a big problem. Well... actually the problem is serious for FreeBSD on QNAP NAS, although the test is considered to be a complete success, but it is not a problem for the Lenovo B590 laptop with Windows 10, where the test is conditionally passed.

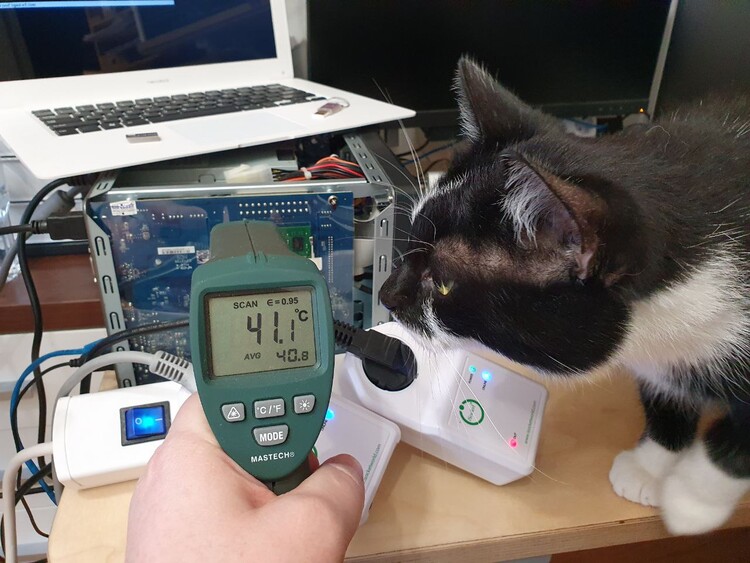

DIMM module temperature test during MemTest86

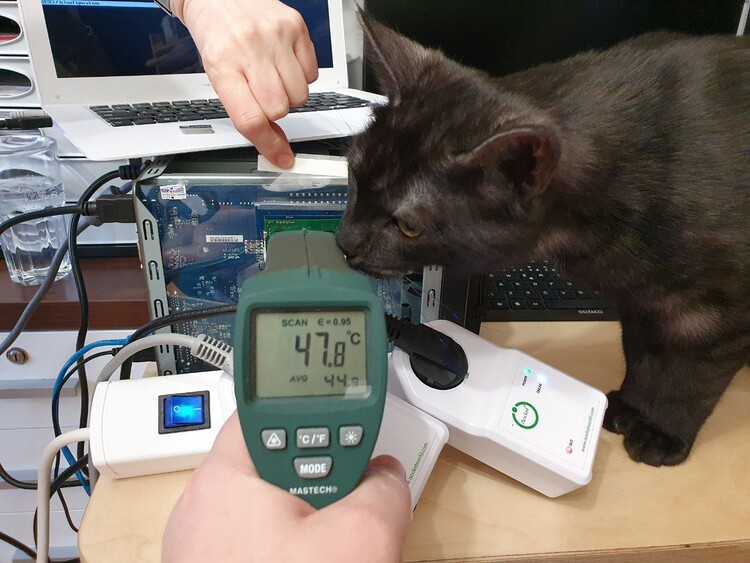

Memory module temperature test while running MemTest86

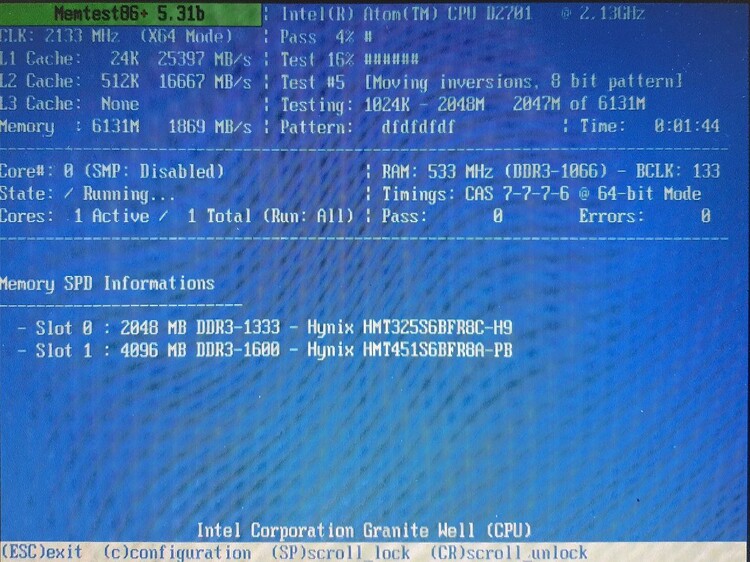

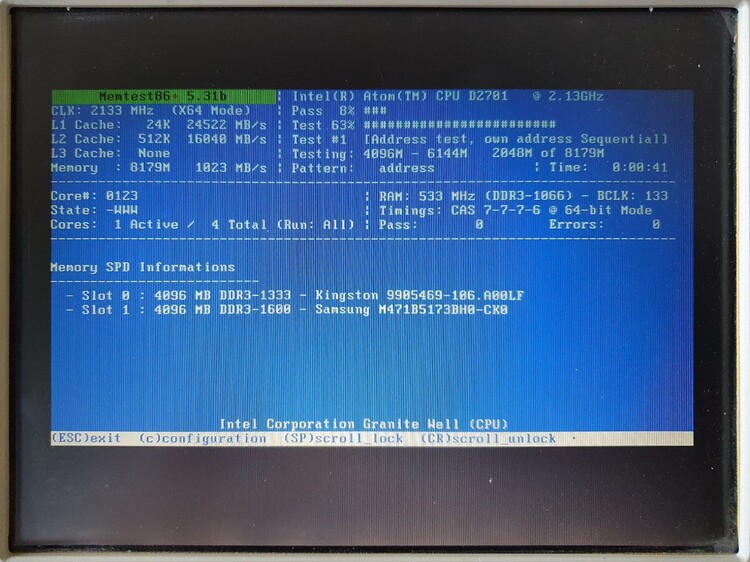

MemTest86 screen
MemTest86 screen shows 2+4Gb on NAS QNAP
TS469 Pro

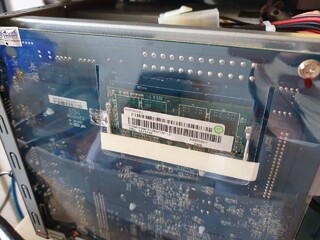

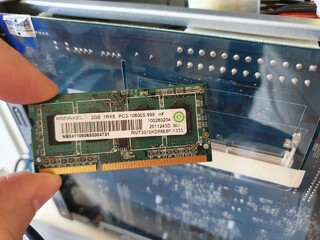

Final configuration for TS-469 Pro. RAMAXEL 2GB 1RX8 PC3-10600S-999 RMT3010KD58E8F-1333 outside:

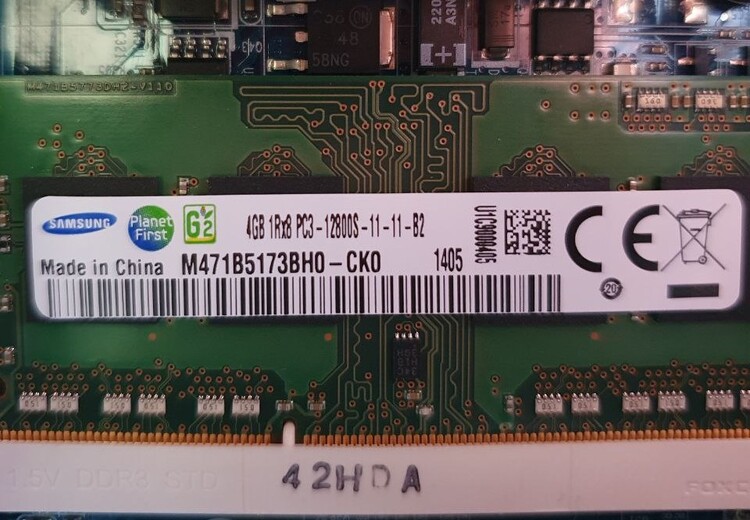

Samsung 4GB 1Rx8 PC3-12800S-11-11-B2 M471B5173BH0-CKO inside:

Samsung 4GB DIMM inside QNAP NAS

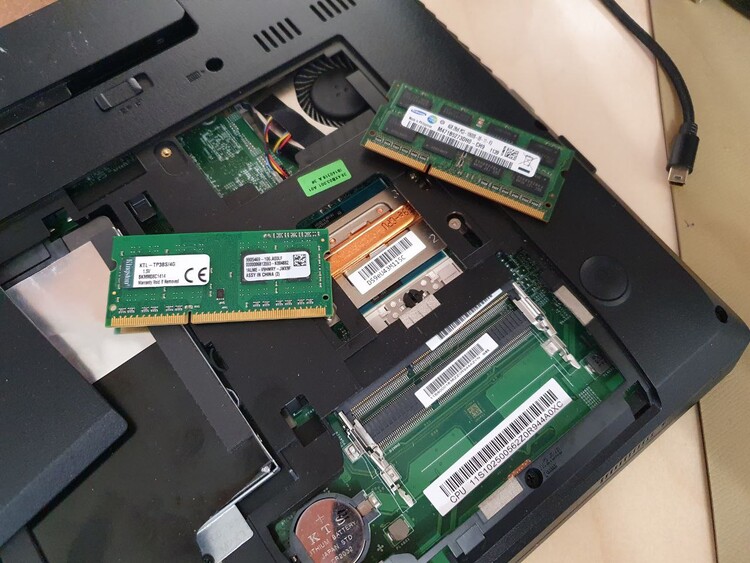

And the problematic Samsung and Kingston modules go to the Lenovo B590, where they work well on Windows 10 or actually when booted from the same FreeBSD 13 ZFS flash drive that I use for QNAP NAS.

Samsung and Kingston modules inside Lenovo B590
Samsung M471B5273DH0-CH9 4GB 2Rx8 PC3-10600S-09-11-F3 + Kingston KTL-TP3BS/4G (DDR3-1333) = 8GB

In fact, I also booted from the FreeBSD flash drive on this laptop via a USB 3.0 port and found no problems! So it's all about a combination of specific hardware, RAM modules, operating system. As always…

How much power does your QNAP NAS use?

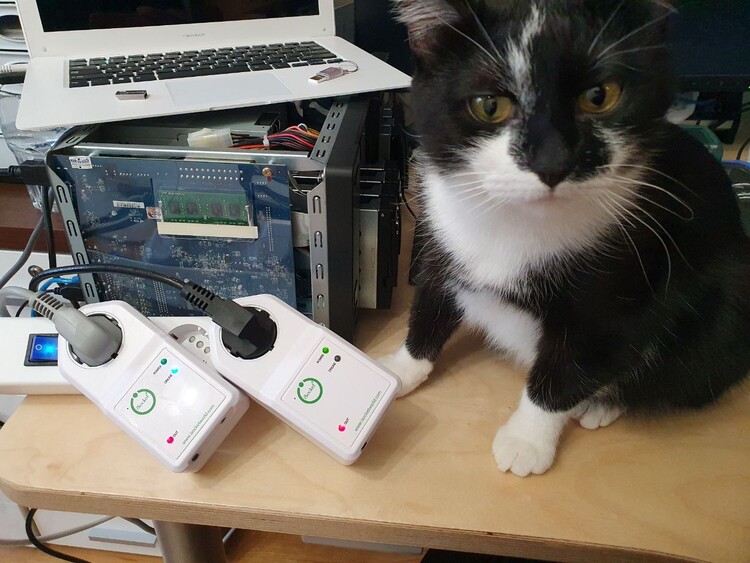

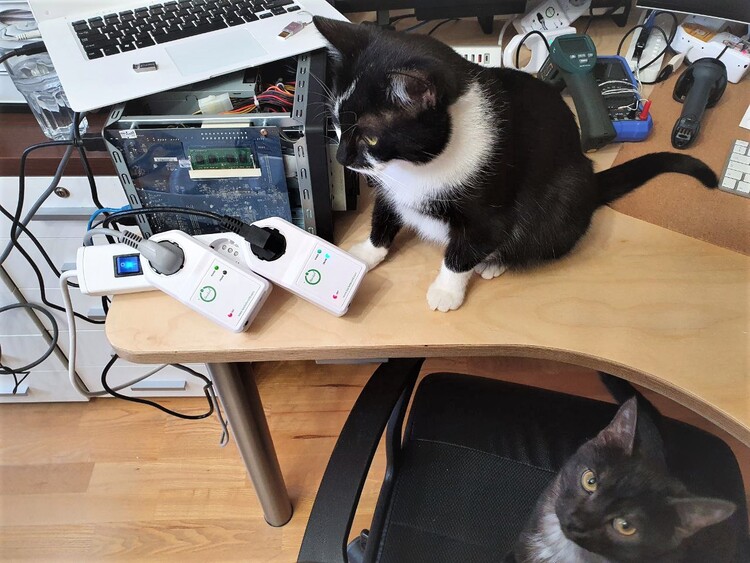

QNAP NAS connected to iSocket to measure power consumption
Both QNAP connected into iSocket units to measure power consumption.

Read another article for detailed QNAP power consumption tests using iSocket. Here I will only briefly mention that without hard drivers they consume only ~ 20W, and with all 4 hard drivers, depending on the modification of the hard drivers, ~ 20-45W and only ~ 1.7W in standby mode.

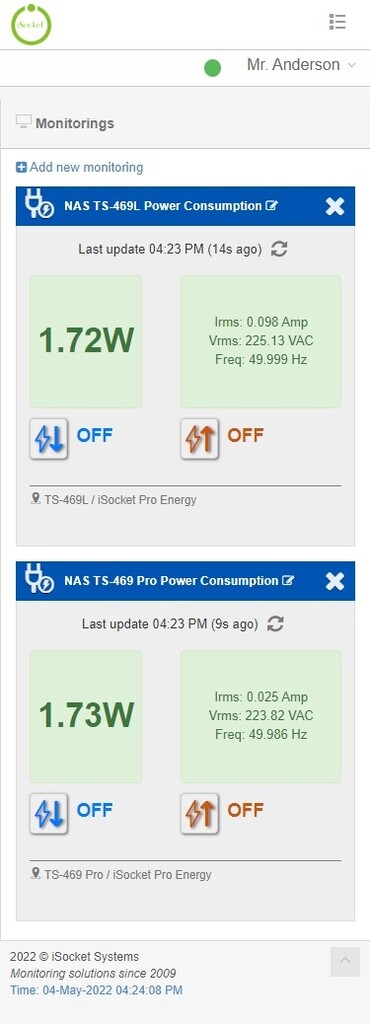

Energy consumption of QNAP NAS in standby modes
Standby power consumption as seen by iSocket.


No problems to have 6GB or 8GB at all. Combining modules with different rates also works, with rare exceptions that are more memory related than motherboard. It is better to have several modules for experiments. This NAS is UEFI, it will boot a UEFI system like FreeBSD. You don't need DOM to run your own system from an external USB flash drive.
